View Issue Details

IDProjectCategoryView StatusLast Update
0001331OpenMPTGeneralpublic2020-05-28 16:16
ReporterMidori Assigned To
PrioritynormalSeverityminorReproducibilityhave not tried
Status newResolutionopen
Platformx86OSWindowsOS VersionXP
Product VersionOpenMPT 1.29.01.00 / libopenmpt 0.5.0 (current stable)
Summary0001331: S3M module per-channel stem export is desynchronised
Description

Rendering an S3M module into separate channel stems produces tracks that are of different length, thus misaligned in time.

Steps To Reproduce

1, Load an S3M module (the only test subject in my case was https://modarchive.org/index.php?request=view_by_moduleid&query=60395)

  1. Enable the "Channel mode" checkbox

  2. Render the audio and load all the stems into your audio editor of choice

Additional Information

This was first observed by another person, using v.1.29 on a Windows 7 x64 machine, after rendering this module: https://modarchive.org/index.php?request=view_by_moduleid&query=60395

I was able to reproduce it on my XP machine, both in v.1.28 and latest stable 1.29 using the same file. Other S3M/XM/MPTM modules were not tested. IT seems to be unaffected in both versions of the tracker.

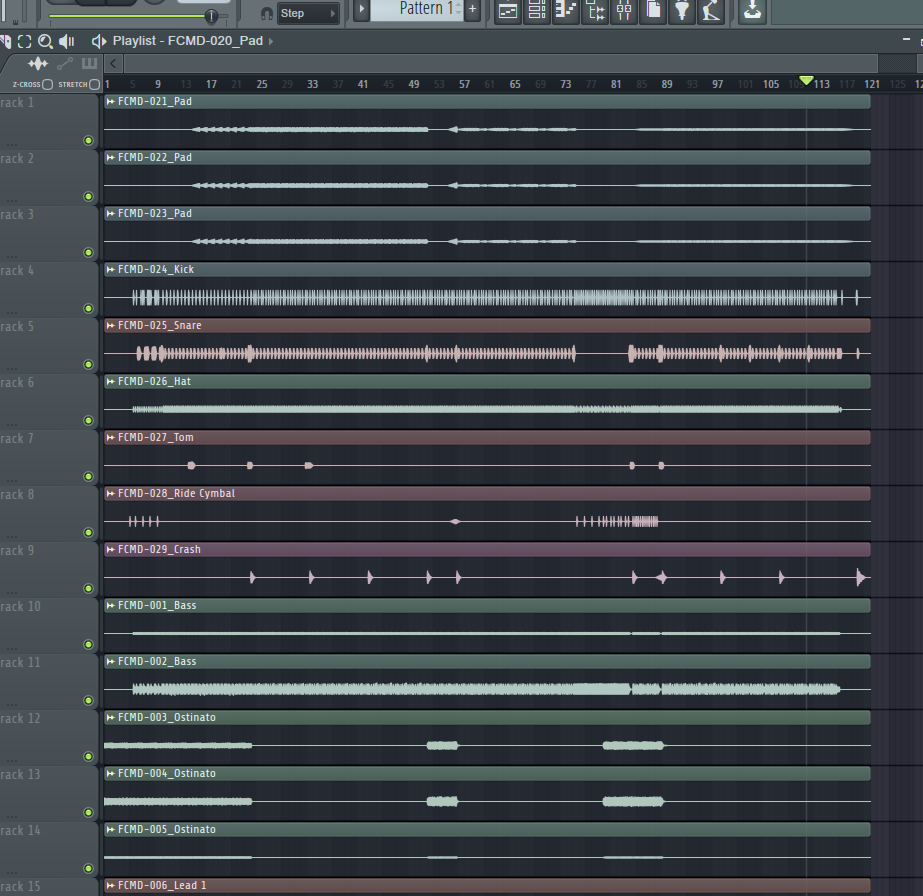

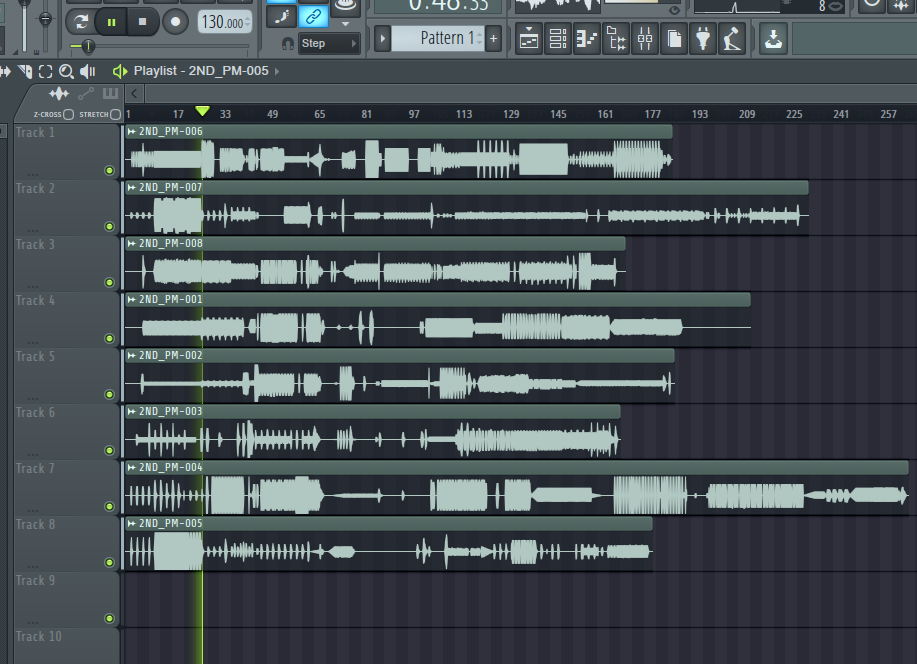

Attached are the screnshots of the faulty S3M export and correct IT export, as seen loaded into FL Studio.

TagsNo tags attached.
Has the bug occurred in previous versions?Yes, only 1.28 tested
Tested code revision (in case you know it)

Activities

Midori

Midori

2020-05-28 16:15

reporter

Saga Musix

Saga Musix

2020-05-28 16:16

administrator   ~0004354

Makes sense because global commands (that includes tempo changes) are not executed on muted channels in S3M. For the time being, you can turn off that specific compatibility setting before exporting, but I guess a better solution has to be found for export.

Issue History

Date Modified Username Field Change
2020-05-28 16:15 Midori New Issue
2020-05-28 16:15 Midori File Added: S3M_Desync_MPT_v1.28.PNG
2020-05-28 16:15 Midori File Added: IT_CorrectExport_MPT_v1.29.PNG
2020-05-28 16:16 Saga Musix Note Added: 0004354
